2.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility

  • 2.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility
  • 2.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility
  • 2.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility
  • 2.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility
  • 2.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility
  • 2.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility
  • 2.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility
  • 2.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility
محل منبع چین
نام تجاری HuaXin
گواهی ISO14001/ISO9001/IATF16949
شماره مدل HX0213N01
سند HX00973BW-SPEC.pdf
مقدار حداقل تعداد سفارش 1000
قیمت US$2.6
جزئیات بسته بندی تاول+جعبه فوم+کیف حباب+داخل کارتن+کارتن اصلی
زمان تحویل 6weeks ~ 8weeks
شرایط پرداخت T/T
قابلیت ارائه 100 هزار در ماه
جزئیات محصول
فناوری نمایش نمایشگر E-Ink Epaper نام 2.13 اینچ E-PAPER
اندازه 2.13" قطعنامه 122x150
زاویه دید 180 درجه رنگ پس زمینه پس زمینه سفید و کاراکتر سیاه
برجسته کردن

2.13 inch E-paper Display

,

122x150 Resolution E-paper Display

,

180° View Angle E-ink Display
پیام بگذارید
توضیحات محصول

2.13 inch E-paper Display with 122x150 Resolution,Brightness VDD



A:Product Parameters

Part NO. HX0213N01
Display  Type E-paper module
Diagonal Screen Size 2.13 inch E-paper
Background color white background and black character
Active Area (mm) 23.70×48.55
Panel size(mm) 29.2×59.2 ×1.14
Resolution 122x150
Interface  --
View angle 180°
Connector -

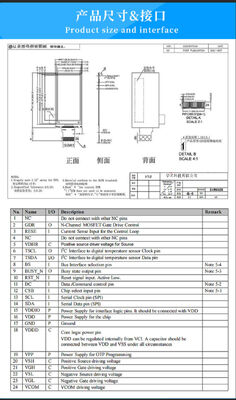

B:Technical Drawing

2.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility 0

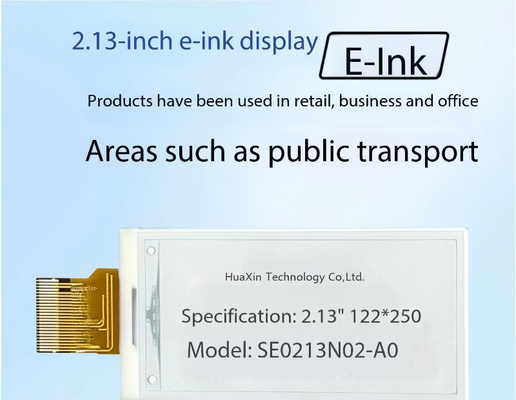

C: Product Picture

2.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility 1

2.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility 22.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility 32.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility 4

2.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility 52.13 inch E-paper Display with 122x150 Resolution and 180° View Angle for Clear Visibility 6

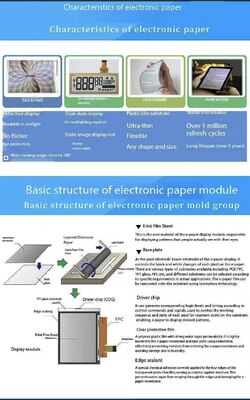

D: E-paper Product Knowledge


  • E- paper  Advantages:
  • paper-like reading experience
  • ultra wide view angle
  • ultra low power consumption
  • ultra thin
  • eye protection
  • environmental protection
  • without backlight



E-paper  Disadvantages

  • suitable to lower temperature
  • size is limited in the market
  • color is limited and can't make full color


E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1.supermarket retail lable

2.e-book reading

3.financial field

4. smart healthcare

5. smart transportation and smart home



H: E-paper display Characteristics



1. Reflective Display

2. Bi-stable

3. Low Power Consumption

4. High Contrast and Readability

5. Flexible and Lightweight

6. Limited Color Capabilities

7. Slow Refresh Rate



I:Are there any drawbacks to using e-paper displays



1.Limited Color Capabilities

2.Slow Refresh Rate:

3.Limited Viewing Angles:

4.Limited Brightness and Contrast

5.Slower Image Updates

6.Limited Availability of Larger Sizes

7.Susceptibility to Environmental Factors
