2.88 Inch Touch Screen TFT Display with 480x640 Resolution and 500cd/m2 Brightness
برای نمونه و کوپن رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| فناوری نمایش | نمایشگر LCD | نام | 2.88 اینچ TFT |
|---|---|---|---|
| اندازه | 2.88 اینچ | قطعنامه | 480*640 |
| روشنایی | 500cd/m2 | رابط | MIPI |
| آی سی درایو | ST7102 | پنل لمسی | اینسل لمسی |
| برجسته کردن | 2.88 inch Touch Screen TFT Display,480x640 resolution TFT LCD Display,500cd/m2 brightness Incell Touch Display,480x640 resolution TFT LCD Display,500cd/m2 brightness Incell Touch Display |
||
توضیحات محصول
2.88 Inch In-Cell Touch Screen TFT Display
High-resolution 480×640 dots display with MIPI interface and ST7102 driving IC, featuring in-cell touch technology.
Technical Parameters
| Part No. | HX0288S023 |
|---|---|
| Display Size | 2.88 inch TFT display |
| Outline Size (mm) | 45.6×63.1×1.61 |
| AA Size (mm) | 43.2×57.6 |
| Resolution | 480×640 |
| Interface | MIPI |
| Brightness | 500 |
| View Angle | All |
| Driving IC | ST7102 |
| Touch Screen | In-cell touch |

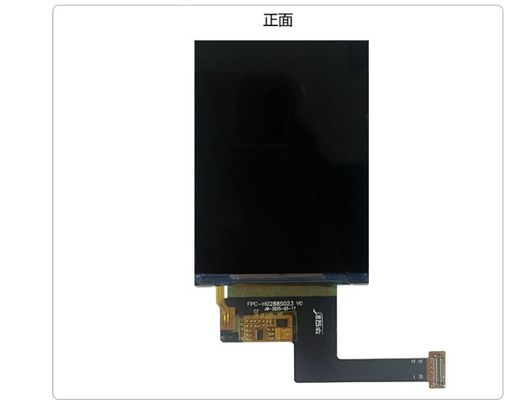

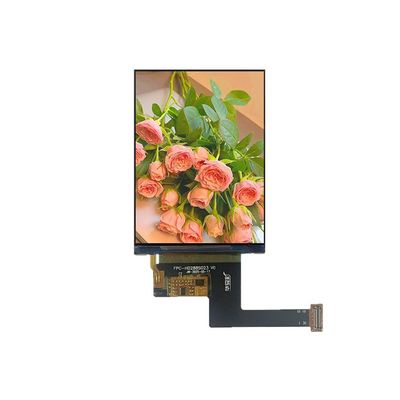

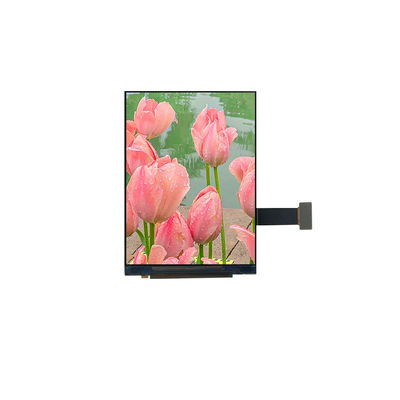

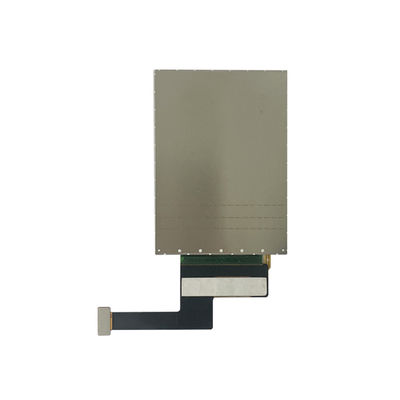

Product Images

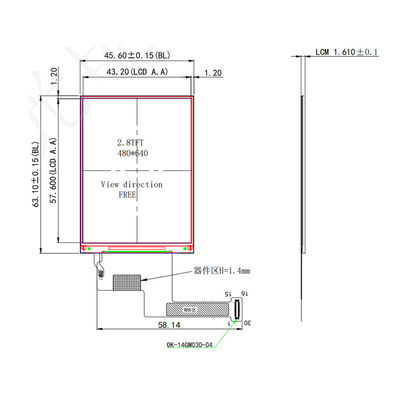

Technical Drawing
TFT Product Knowledge
TFT Display Characteristics
- Image Quality: Excellent resolution, sharpness, and color accuracy
- Response Time: Fast pixel switching capability
- Viewing Angles: Wide viewing angles with minimal color shift
- Energy Efficiency: Lower power consumption compared to other technologies
- Size Flexibility: Available in various sizes from small handheld to large panels
- Backlighting: Typically uses LED backlighting for screen illumination
- Applications: Versatile use across multiple industries
TFT Display Limitations
- Limited viewing angles compared to some newer technologies
- Moderate contrast ratio
- Backlighting requirements affect power consumption
- Potential motion blur in fast-moving images
- Limited flexibility in physical form
- Restricted color gamut compared to advanced display types
Product Applications
- Car navigation systems and printers
- Video calling devices and advertising displays
- Automotive dashboards and medical devices
- Fitness equipment and handheld devices
- Industrial control systems and home appliances
Company Information
Huaxin Technology (Enshi) Co., LTD - Founded in 2009 in Hubei, Enshi, specializing in LCD, LCM, TFT, backlight, and OLED technologies.
Huaxin Advantages:
- Cost-effective inland manufacturing base
- Advanced equipment for stable quality
- Automated processes for efficiency and consistency
- 20+ years of industry experience
- Custom design capabilities
Certifications: ISO14001, ISO9001/IATF16949, SGS
Company Details:
- Registered capital: 20 million
- Current staff: 500+
- R&D accounts for 10% of workforce
- QC accounts for 15% of workforce
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands of logarithms/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand pieces/Day |
