3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications

  • 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications
  • 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications
  • 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications
  • 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications
  • 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications
  • 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications
محل منبع چین
نام تجاری HuaXin
گواهی ISO14001/ ISO9001/IATF16949
شماره مدل HX1392FH101GG
سند HX1392FH101GG-SPEC.pdf
مقدار حداقل تعداد سفارش 500
قیمت $68
جزئیات بسته بندی تاول+جعبه فوم+کیف حباب+داخل کارتن+کارتن اصلی
زمان تحویل 6weeks ~ 8weeks
شرایط پرداخت t/t
قابلیت ارائه 50k در ماه

برای نمونه و کوپن رایگان با من تماس بگیرید.

WhatsApp:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
فناوری نمایش نمایشگر آمول نام تابلو OLED
اندازه 3.92" قطعنامه 1080*1240
روشنایی 520 رابط MIPI
عکسبرداری RM692C9
برجسته کردن

3.92 Inch AMOLED Display Module,1080*1240 Resolution AMOLED Screen,MIPI Interface OLED Panel

,

1080*1240 Resolution AMOLED Screen

,

MIPI Interface OLED Panel
می توانید محصولات مورد نیاز خود را علامت بزنید و در صفحه پیام با ما ارتباط برقرار کنید.
پیام بگذارید
توضیحات محصول
3.92 Inch AMOLED Display Module 1080*1240 Dots MIPI Interface 520c/d Brightness
3.92 Inch AMOLED display module with 1080*1240 resolution, MIPI interface, and 520cd/m² brightness.
Product Parameters
Part Number HX1392FH101GG
Screen Type 3.92 inch AMOLED
Resolution 1080*1240
Viewing Angle All directions
Active Area (mm) 65.448 (W) * 75.144 (H)
Panel Size (mm) 67.248*79.874*0.699
Brightness (cd/m²) 520
Interface MIPI
Pin Quantity 44 pins
Driving IC RM692C9

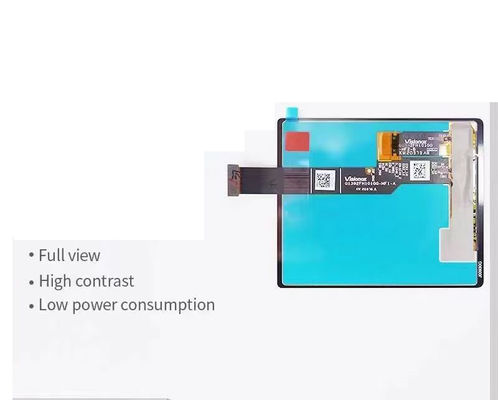

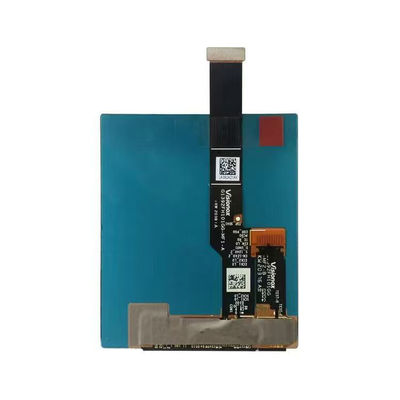

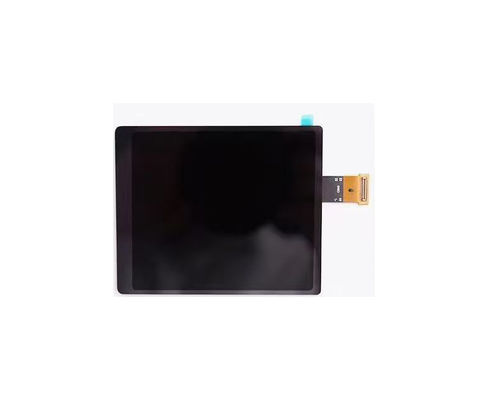

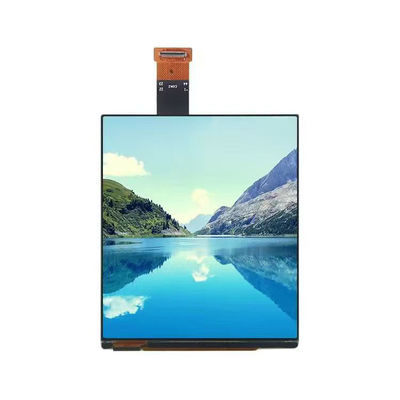

Product Images
3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications 0 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications 1 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications 2 3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications 3

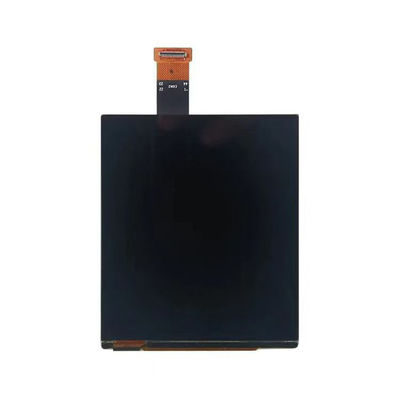

Drawing & Pin Definition
3.92 Inch AMOLED Display Module with 1080*1240 Resolution and MIPI Interface for High Brightness Applications 4
OLED Product Knowledge
OLED Advantages:
  • Lighter and thinner than LCDs
  • High contrast ratio
  • High color saturation
  • Lower power consumption
OLED Disadvantages:
  • More expensive than LCD and TFT
  • Shorter lifetime than LCD and TFT
Company Information
Huaxin Advantages:
  • Factory located in cost-effective inland city
  • Advanced equipment for stable quality
  • Most processes use fully automatic equipment
  • Professional engineers with 20+ years experience
  • Custom product design capability
Certifications:
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Details:
  • Huaxin Technology (Enshi) Co., LTD
  • Located in Hubei, Enshi
  • Founded in 2009
  • High-tech enterprise specializing in LCD, LCM, TFT, backlight, OLED
  • LCD product range: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM product range: COB, TBA, COG, TP, LED backlight series
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Safety box & instrument
  • Lock & smart home
  • Transmitter & watch
  • Watch & radio
  • Collimator & navigator
AMOLED Display Characteristics
  • Self-Emissive Pixels
  • High Contrast Ratio
  • Excellent Color Accuracy and Vibrancy
  • Wide Viewing Angles
  • Power Efficiency
  • Thinness and Flexibility
  • Fast Response Time
Power Efficiency Comparison
1. Power Consumption:
  • AMOLED displays consume power per-pixel (black/dark pixels use very little power)
  • LCD/LED displays require constant backlight power regardless of content
2. Content Dependency:
  • AMOLED more efficient for dark content (pixels can be turned off)
  • LCD/LED power consumption remains constant for all content
3. Brightness Control:
  • AMOLED can adjust pixel brightness individually for better efficiency
  • LCD/LED typically have fixed backlight brightness
4. Display Size:
  • AMOLED more power-efficient for smaller displays
  • Larger LCD/LED displays may require more power-hungry backlights
