0.99 Inch High-Definition IPS TFT LCD Round Color Screen - 128x115 Resolution, GC9107 , Full-Color Display, Wide Viewing Angle, for Smart Wearables/DIY Electronic Projects/Industrial Instrument Panels
برای نمونه و کوپن رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| فناوری نمایش | صفحه نمایش TFT گرد | نام | صفحه نمایش اولد ساعت |
|---|---|---|---|
| اندازه | 0.99''Round | | وضوح | 128*115 |
| نوع نمایش | TFT | رابط | حصار |
| برجسته کردن | 0.99 inch IPS TFT LCD round display,128x115 resolution round color screen,GC9107 full-color TFT display,128x115 resolution round color screen,GC9107 full-color TFT display |
||
توضیحات محصول

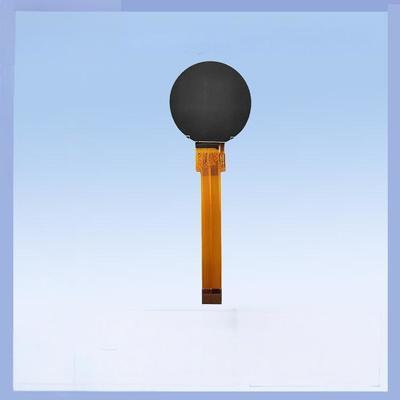

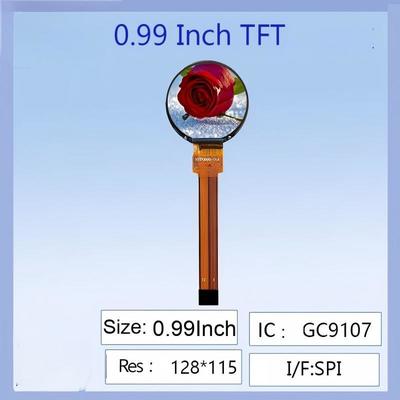

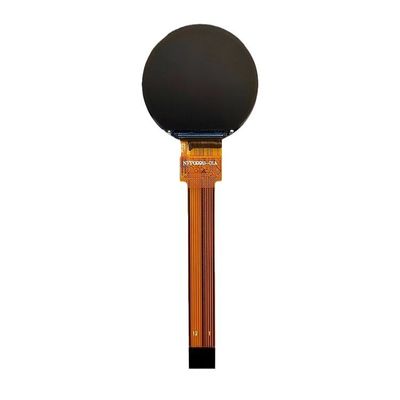

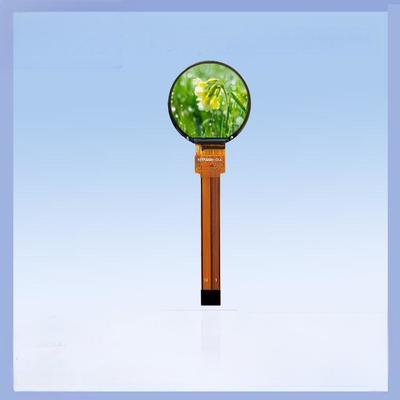

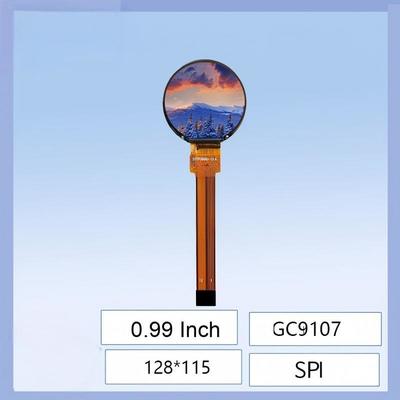

0.99 Inch High-Definition IPS TFT LCD Round Color Screen
High-quality 0.99" IPS round TFT LCD with 128x115 resolution, GC9107 driver IC, full-color display, and wide viewing angle. Ideal for smart wearables, DIY electronic projects, and industrial instrument panels.
Key Features
- 128x115 resolution for crisp display
- GC9107 driver IC for stable performance
- Wide viewing angle in all directions
- Long lifespan (50,000+ hours)
- RoHS certified for commercial use
- 3.3V supply voltage
- 450TYP luminance
- 4 S-PI connection type
Product Specifications
| Parameter | Value |
|---|---|
| Part No. | ESHX099XZJR02 |
| Driver IC | GC9107 |
| Outline Dimensions (L x W x H) | 26.71mm x 26.22mm x 1.86mm |
| Active Area (L x W) | 24.36mm x 21.88mm |
| Viewing Angle | All directions |
| Operation Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to 80°C |
Product Images
Drawing & Pin Definition
Display Technology Comparison
OLED Advantages
- Lighter and thinner than LCDs
- High contrast ratio
- Superior color saturation
- Lower power consumption
OLED Disadvantages
- Higher cost compared to LCD and TFT
- Shorter operational lifetime than LCD and TFT
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
- Location: Hubei, Enshi
- Founded: 2009
- Specialization: LCD, LCM, TFT, backlight, and OLED displays
- Registered capital: 20 million
- Current staff: 500+
- R&D team: 10% of workforce
- Quality control: 15% of workforce
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Company Advantages
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Automated processes for efficiency
- 20+ years of LCD industry experience
- Custom product design capabilities
Product Applications
- Safety boxes & instruments
- Locks & smart home devices
- Transmitters & watches
- Radios
- Collimators & navigators
