1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness

  • 1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness
  • 1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness
  • 1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness
  • 1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness
  • 1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness
  • 1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness
محل منبع چین
نام تجاری HuaXin
گواهی ISO14001/ISO9001/IATF16949
شماره مدل HX0136Y002
سند HX0136Y002-spec.pdf
مقدار حداقل تعداد سفارش 1000
قیمت قابل مذاکره
جزئیات بسته بندی تاول+جعبه فوم+کیف حباب+داخل کارتن+کارتن اصلی
زمان تحویل 6weeks ~ 8weeks
شرایط پرداخت t/t
قابلیت ارائه 100 هزار در ماه

برای نمونه و کوپن رایگان با من تماس بگیرید.

WhatsApp:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
فناوری نمایش پنل LCD TFT نام ماژول TFT گرد
اندازه 1.36 " وضوح 360x360
آی سی درایو GC9C01 زاویه مشاهده زاویه دید آزاد
رابط QSPI
پیام بگذارید
توضیحات محصول

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness


A: Product Parameter

Part No: HX0136Y002
display Mode 1.36 inch round TFT Display
outline size(mm) 35.88(H) ×38.44(V)×1.6(T)
AA size(mm) 33.48*33.48
Display dots 360X360
view Angle ALL
Brightness 400C/D
interface QSPI
Driving IC GC9C01

B:Product Picture

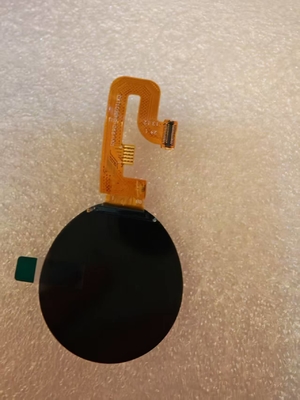

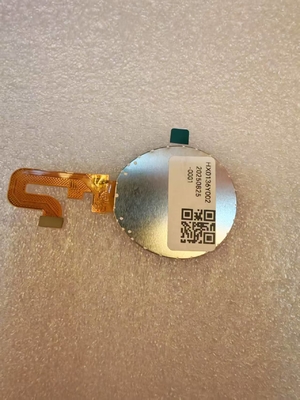

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness 0

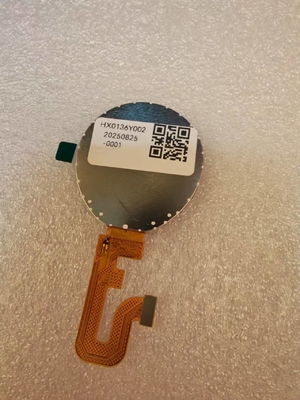

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness 1

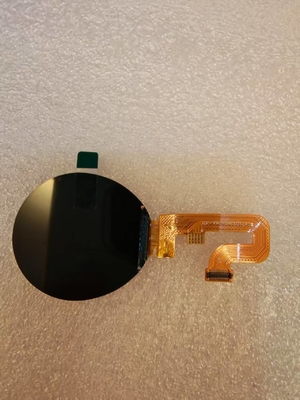

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness 2

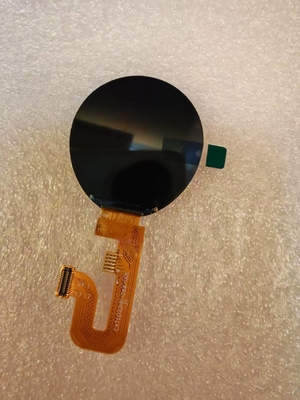

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness 3


 C: Drawing

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness 4



 D:TFT Product  Knowledge


tft substrate input and CF substrate input flow chart as below


1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness 5


TFT structure  as below

1.36 Inch Round TFT Display 360X360 Resolution QSPI Interface Driving IC GC9C01 400C/D brightness 6




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module


  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day



G: Product Application


1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance


H: TFT Display Characteristics


1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.


2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.


3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.


4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.


5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.


6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.


7.Wide Applications:


I: Are there any drawbacks or limitations to using TFT displays?


1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
