High Resolution 3.5 Inch VR TFT display 1440*1600 Dots 50 PIN MIPI driving IC JD36860

  • High Resolution 3.5 Inch VR TFT display 1440*1600 Dots 50 PIN MIPI driving IC JD36860
  • High Resolution 3.5 Inch VR TFT display 1440*1600 Dots 50 PIN MIPI driving IC JD36860
  • High Resolution 3.5 Inch VR TFT display 1440*1600 Dots 50 PIN MIPI driving IC JD36860
  • High Resolution 3.5 Inch VR TFT display 1440*1600 Dots 50 PIN MIPI driving IC JD36860
  • High Resolution 3.5 Inch VR TFT display 1440*1600 Dots 50 PIN MIPI driving IC JD36860
Place of Origin China
نام تجاری HuaXin
گواهی ISO14001/ISO9001/IATF16949
Model Number HX035ZSM-NW0
Minimum Order Quantity 1000pcs
قیمت Negotiated
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

برای نمونه و کوپن رایگان با من تماس بگیرید.

WhatsApp:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
Display Technology VR display name MR display
size 3.5“ Display Type IPS
Interface 50 PIN MIPI view angle all o'clock
Resolution 1440*1600 Brightness 150c/d
پیام بگذارید
توضیحات محصول

High Resolution 3.5 Inch VR TFT  display  1440*1600  Dots 50 PIN MIPI  driving IC JD36860

A:Product Parameter

Part No: HX035ZSM-NW0
display Mode 3.5 inch VR tft display
outline size(mm) 62.2 (W)×73.6 (H)×1.65 (t)mm
AA size(mm) 59.4 (W)×66.0 (H)mm
Display dots 1440*1600
view Angle ALL
Brightness 150C/D
interface 50 PIN MIPI
Driving IC  JD36860

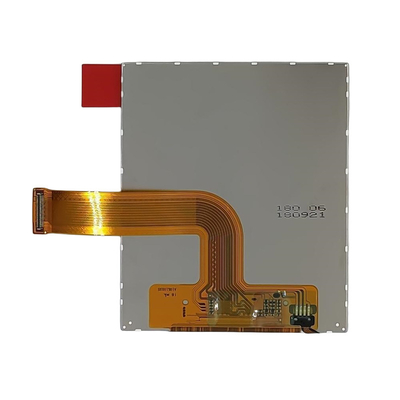

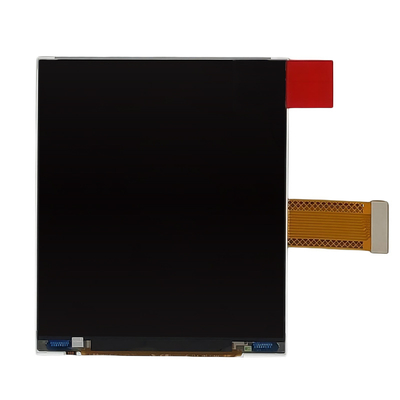

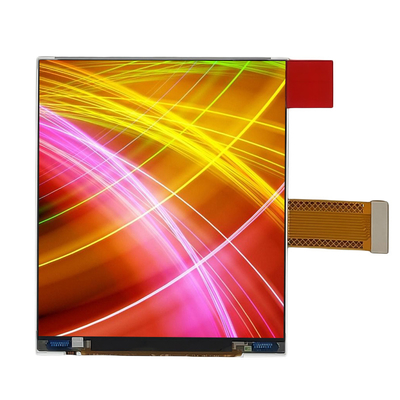

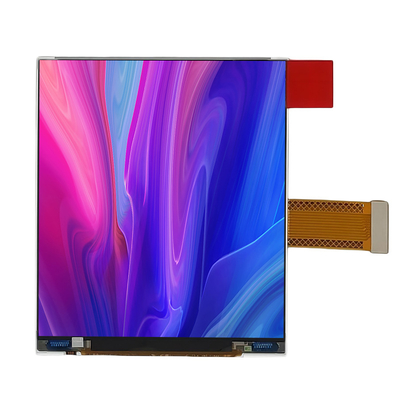

B:Product Picture

High Resolution 3.5 Inch VR TFT display 1440*1600 Dots 50 PIN MIPI driving IC JD36860 0

High Resolution 3.5 Inch VR TFT display 1440*1600 Dots 50 PIN MIPI driving IC JD36860 1

High Resolution 3.5 Inch VR TFT display 1440*1600 Dots 50 PIN MIPI driving IC JD36860 2

High Resolution 3.5 Inch VR TFT display 1440*1600 Dots 50 PIN MIPI driving IC JD36860 3


C: Drawing




D: TFT Product  Knowledge


tft substrate input and CF substrate input flow chart as below


High Resolution 3.5 Inch VR TFT display 1440*1600 Dots 50 PIN MIPI driving IC JD36860 4


TFT structure  as below

High Resolution 3.5 Inch VR TFT display 1440*1600 Dots 50 PIN MIPI driving IC JD36860 5




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module


  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day



G: Product Application


1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance


H: TFT Display Characteristics


1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.


2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.


3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.


4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.


5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.


6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.


7.Wide Applications:


I: Are there any drawbacks or limitations to using TFT displays?


1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
